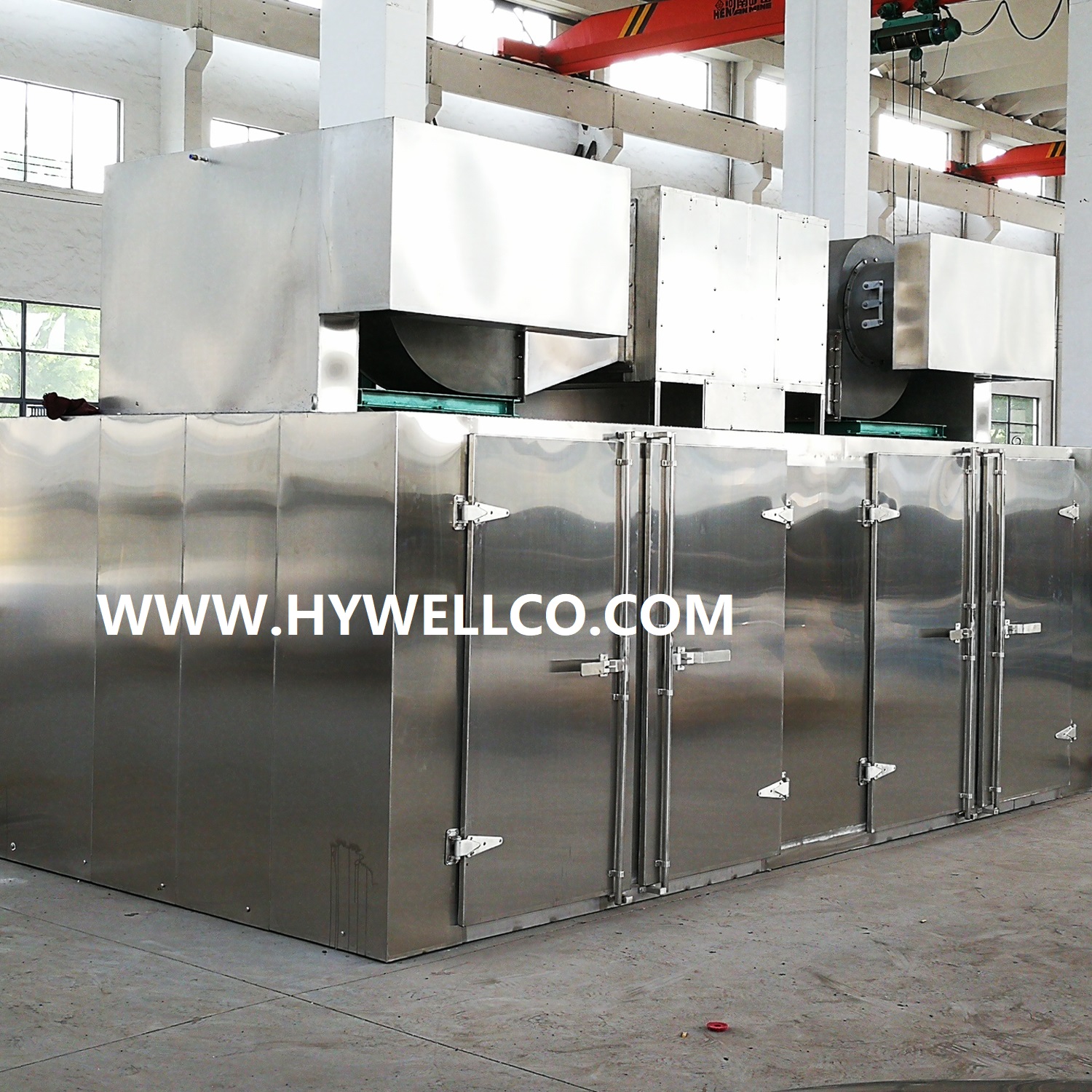

Plastic Resin Drying Oven
|Payment Type:||L/C,T/T,Western Union|
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Productivity:||20-30 Set per Year|
|Place of Origin:||China|
|Supply Ability:||5-10 Set/Sets per Month|
Model No.: CT-C
Plastic Resin Drying Oven
1. Drying temperature: steam heating 50-130˚C, Max.140˚C.
2. Machine use the automatic control system and computer control system
3. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)
1. Description for Plastic Resin Drying Machinery:
Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And Plastic Resin Drying Oven can use dried raw material and heat source, involving steam, hot water, electricity or far infrared.
2. Brief Introduction for Plastic Resin Drying Oven:
CT-C series Plastic Resin Dryer is equipped with low noise axial flow fan and automatic temperature control system.
The circle system is fully sealed, making the hot efficiency increased from 3-7% of traditional oven to 35-45%, even up to the maximum hot efficiency of 70%. The successful design of Plastic Resin Oven makes the Plastic Resin Drying Machine catch up the advanced level both at home and abroad.
3. Feature for Plastic Resin Dryer Machine:
Plastic Resin Drying Equipment features is low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.
Advantage 2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection. 3. The whole machine is low in the noise. The operation is in balance. 4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. 5. The machine can be used for drying various materials. Application Optional Choices 5. If without heating system , it can as a cooler to make particle with cooling air.
1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
1. For the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or others.
2. For the material for the machine , we have choices on AISISUS304 , AISISUS316L,carbon steel and so on .
3. For the control system , we have choices on push button, PLC+HMI and so on .
4. For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions ,such as steam ,electricity.
2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.
3. The whole machine is low in the noise. The operation is in balance.
4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.
5. The machine can be used for drying various materials.
5. If without heating system , it can as a cooler to make particle with cooling air.
|Industry standard||Specification standard||Drying weight per batch (Kg)||Power (Kw)||Steam consumption (Kg/h)||Evaporation area (m2)||Air capacity (m3 /h)||Temperature error||Baking plate||Overall dimension (LxWxH) mm||Baking cart (set)|
|It also design and manufacture base customer require. Welcome to contact us!|| |
